EXISTING PART. NEW DOCUMENTATION.

Reverse Engineering Services for Legacy Parts and CAD Support

When prints are missing, outdated, or incomplete, Brockie helps turn existing parts and requirements into usable files. Our reverse engineering services support CAD design, prototyping, and practical next steps for quoting, fabrication, and repeat production.

Request A Quote
3 SIMPLE STEPS

Clear Process for Better Outcomes
Share the Part

Send a sample part, sketch, or existing files and tell us what matters most, including fit, function, interfaces, and timing.
Scope + CAD Support

We confirm requirements, capture key dimensions, and create models and drawings with any recommendations.
Prototype + Release

We support prototyping and revisions as needed, then finalize the files for quoting, fabrication, and production.
FROM PART TO DOCUMENTED FILES

Reverse Engineering Services That Reduce Guesswork

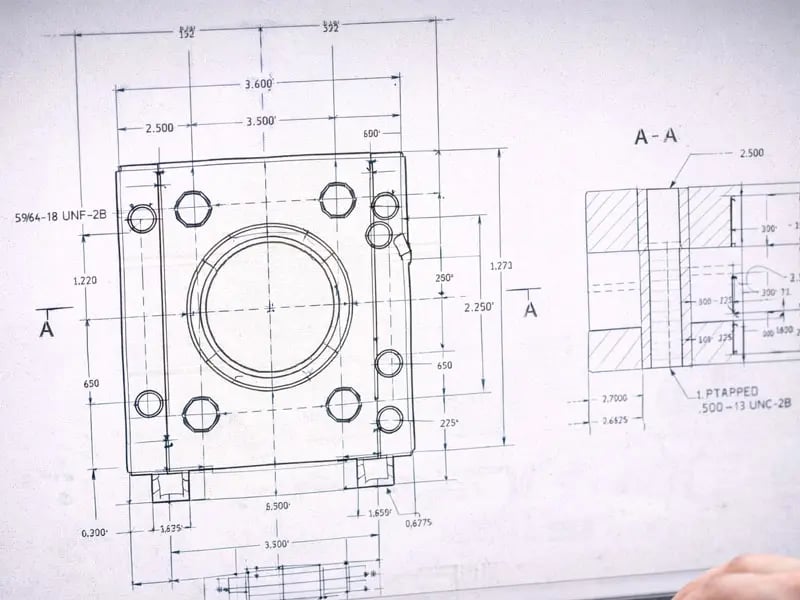

Build-Ready-Files
Build-Ready Files

Clear models and drawings that reduce questions and prevent delays.

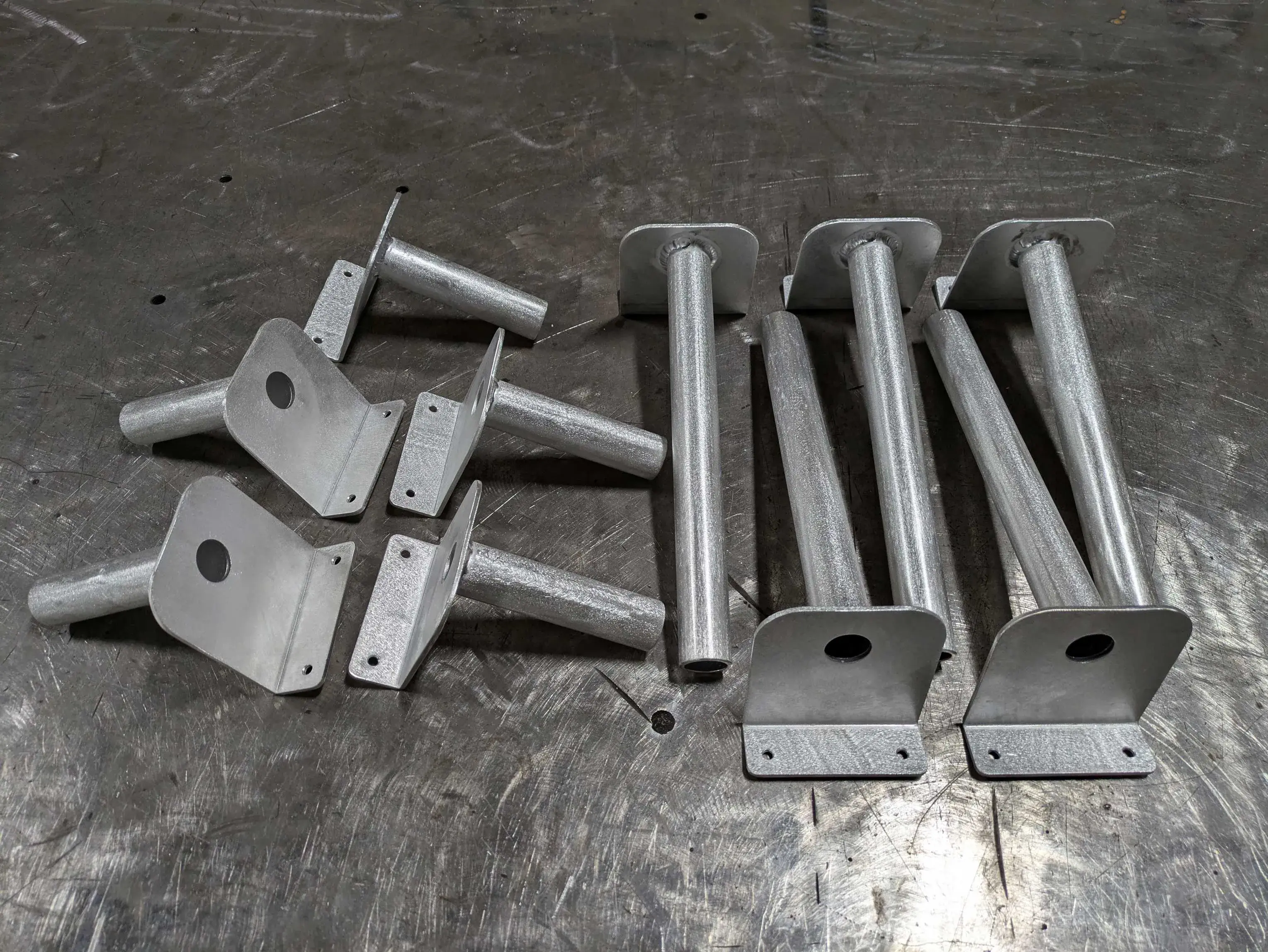

1000008214
Better Manufacturability

Practical design support that improves cost, lead time, and consistency.

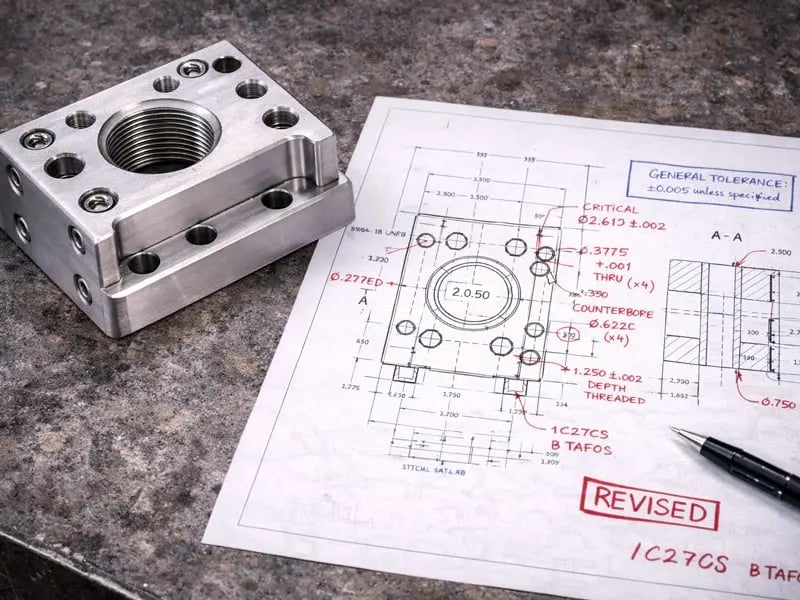

Faster-Iteration
Faster Iteration

Streamlined prototyping to validate fit and function before scaling.

CAD & DESIGN SUPPORT

CAD and Design Support for Fabrication Readiness

Brockie’s reverse engineering services bridge the gap between “what you have” and “what you need.” With CAD design services, design support, and prototyping, we help ensure parts can be fabricated and repeated with confidence.

  • Works from sample parts, sketches, or incomplete prints
  • CAD design services to model and document requirements
  • Practical design support to improve manufacturability
  • Prototyping and revision support as needed
  • Ready for fabrication: cutting, forming, machining, welding, and finishing

Request A Quote

Reverse-Engineering
COMPLETE PART SUPPORT

From Reverse Engineering and CAD Support to Finished Parts

Pair reverse engineering services with cutting, forming, welding, machining, and finishing to reduce handoffs and keep specs consistent.

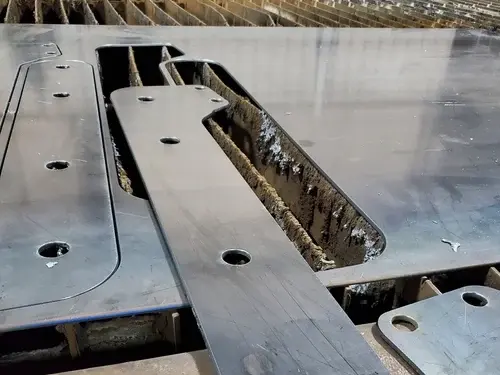

Laser Cutting 800x600
Laser Cutting

Start with laser cutting services for clean, accurate blanks that form and assemble the way they should.

Forming-and-Bending
Forming & Bending

Turn laser-cut blanks into accurate, repeatable bends for brackets, panels, and formed components.

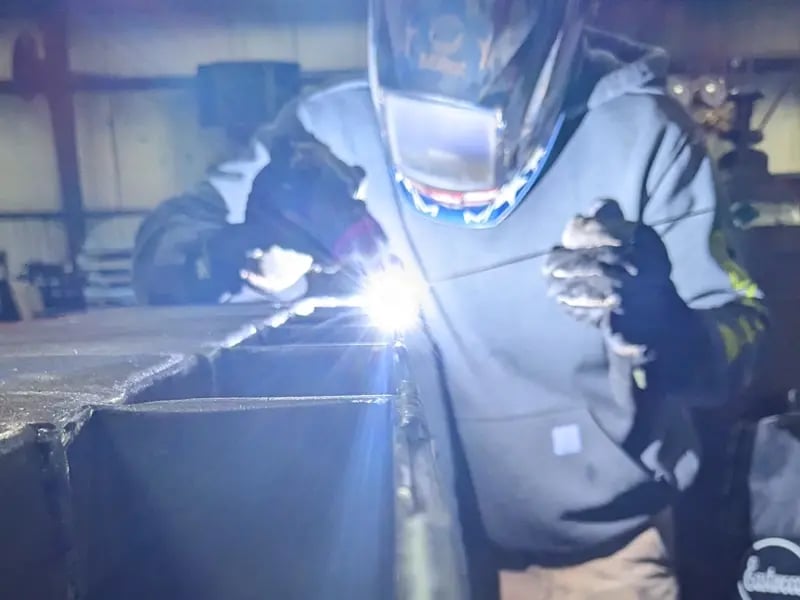

Mig-and-Tig-Welding
MIG & TIG Welding

Build strong, reliable assemblies that fit as designed and hold up in real-world demanding environments.

Finishing
Finishing

Protect and complete parts with finishing options that improve durability, appearance, and readiness for installation.

FROM PRINT TO PART—DONE RIGHT

Trusted by Manufacturers and Build Teams

caster-concepts-mfg-logo Bekum-New-logo IMI-Norgren Consumers Logo Mectron Logo PSM_Logo Brockie Client Logos
QUALITY & COMPLIANCE

Reverse Engineering Services You Can Count On

Every job is built with repeatability in mind, from first cut to final check. We’re JCP Registered and follow practical controls to keep parts consistent, documented, and ready for use.

Request A Quote

HAVE QUESTIONS? START HERE

Common Questions About Reverse Engineering and CAD Support
REQUEST A QUOTE

Have a Project That Needs Reverse Engineering Services?

If you need reverse engineering services for an upcoming job, share your part, files, or requirements, and our team will review the scope, confirm the details, and help you take the next step.

Request A Quote
